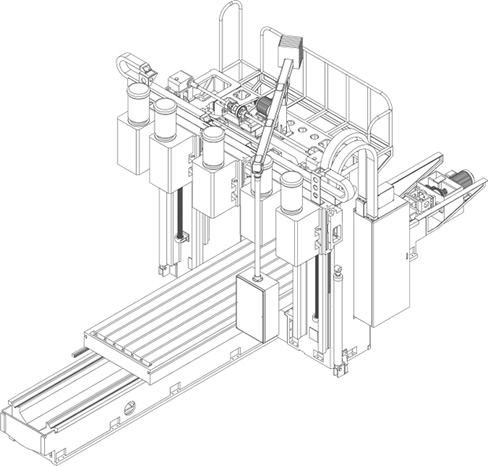

Gantry fixed column type milling machine
Download
| Description/Model | Unit | CPL-1500 | CPL-2000 | CPL-2500 | CPL-3000 |
|---|---|---|---|---|---|
| X- axis travel | mm | 2,000~10,000 | 3,000~10,000 | 3,000~10,000 | 3,000~10,000 |
| Y- axis travel | mm | 1,850 | 2,350 | 2,850 | 3,350 |
| Z- axis travel | mm | 500 mm | |||
| Distance from spindle nose to table | mm | 500 (Max.) | |||
| Distance between columns | mm | 1,600 | 2,100 | 2,600 | 3,100 |
| Table width | mm | 1,200 | 1,600 | 2,000 | 2,500 |
| Table length | mm | 2,000~6,000 | 3,000~6,000 | 3,000~6,000 | 3,000~6,000 |
| T slot | mm | 22 × 38 | |||
| X Axis Rapid Feedrate | mm / min | 6,000 | 4,000 | 4,000 | 3,000 |
| Y.Z Axis Rapid Feedrate | mm / min | 3,000 | 2,400 | ||
| Cutting Feedrate | mm / min | 20 ~ 2,000 | |||
| Vertical Head Type | - | 1pcs(Left Vertical Milling Head is Optional) | |||
| Spindle Motor | kw / HP | 7.5kW/10HP×4P ~ 11kW/15HP×4P (By Order) | |||
| Max diameter of cutter | mm | Φ150 | |||
| Taper of Spindle Nose | - | N.T. 50# | |||
| Diameter of Spindle Nose | mm | Φ128.57 | |||
| Spindle speeds Type(50C/S) | rpm | 66 ~ 660 rpm (Multi Section By Head Type) | |||
| Spindle speeds Type(60C/S) | rpm | 80 ~ 800 rpm (Multi Section By Head Type) | |||
| Vertical Travel | mm | 300 ~ 600 (By Head Type) | |||
| Standard Attachments： | Optional special Accessory： |
|---|---|
| 1. X Axis Ball Screw Drive System | 1.NC Control Mitsubishi / Fanuc |
| 2. X axis zinc plated flesable cover | 2. Left Vertical Milling Head |
| 3. Yaxis Ball Screw | 3. 90° angle milling head |
| 4. Y Axis Slideway Guards | 4. Movable Manual Pulse Generator |
| 5. Centralized automatic lubricating system | 5. Tool Holder Clamp (BT-50) |
| 6. Toolbox | 6. Digital readout ＆ Display |
| 7. Air Coolant Nozzle |
Special specification can be customized separately.
Design and specification are subject to change without prior notice.
Try it now! You might contact with us in the link below.
